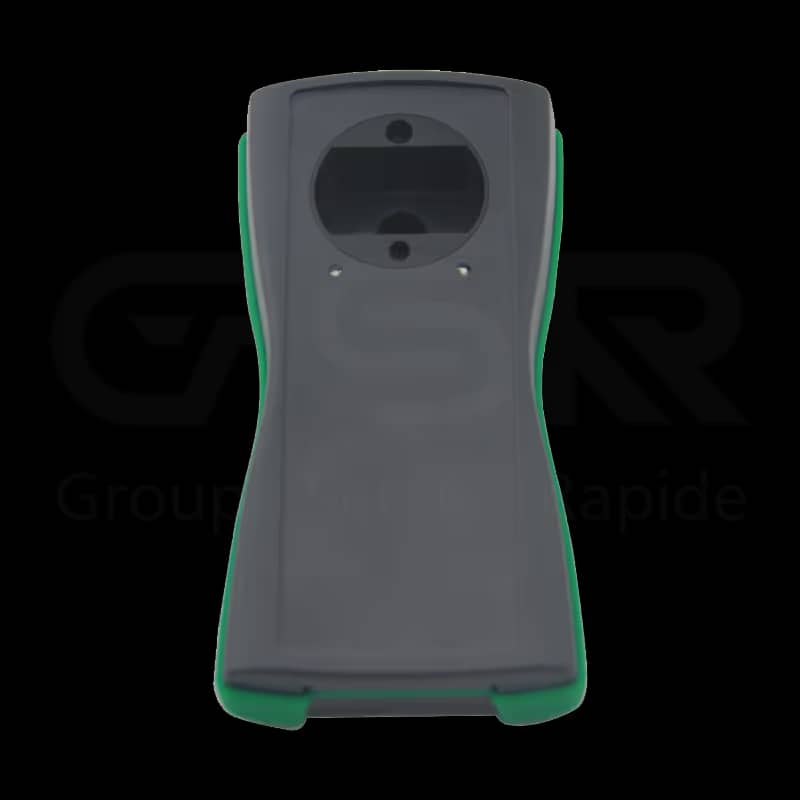

TANGO PROGRAMMER
Réf:GSRAP1338Le TANGO PROGRAMMER est un outil professionnel de programmation de transpondeurs spécialement conçu pour la génération et la duplication de clés automobiles. Compatible avec une large gamme de véhicules et de systèmes IMMO, il permet de lire, écrire, cloner et préparer des transpondeurs à partir des données extraites des calculateurs (ECU, EEPROM, etc.). Grâce à son logiciel puissant et régulièrement mis à jour, le Tango Programmer offre une couverture étendue, notamment pour les marques telles que BMW, Toyota, VAG, Ford, et bien d’autres.
C’est un outil incontournable pour les serruriers auto et les ateliers spécialisés en programmation électronique.
Livraison gratuite
1-2 jours
En stock
Aujourd'hui
Garantie
1 an
Specs:
Manufacturer: SCORPIO-LK
Condition: New
Tango Original Universal Transponder Key Programmer Highlights
- Tango subscription - NEW - allows access to all Tango features and functions
- Cloning of Toyota / Lexus Smart keys on SLK-01, SLK-02, SLK-03/03E, SLK-04/04E, SLK-05/05E, SLK-07E emulators
- Subaru Image Generation Page1 14, 17
- TangoPlus Subaru Smart Key (Page1 F1, F3) Systems OBD framework
- Toyota-H Immobilizer All Keys Lost solution (Gen1 MCU 11910 & Gen2 MCU 12xxx) - Tango + Barracuda (all markets)
- Toyota-H Immobilizer All Keys Lost solution (Gen1 MCU 11910) - SLK-06 (all markets)
- Clonning of Toyota H-key [Blade](128bit) on LKP-04
- Toyota/Lexus Smart Key Systems OBD Framework
- Toyota G Immobilizers OBD Reset & Add Key (including EU type)
- Toyota/Lexus H Keys Image Generation Page1 39, 59, 5A, 99, 3A, 7A on TRPWS21 transponder
- Toyota/Lexus G Keys Image Generation and Clonning Page1 19,36,56,96,37,57 on LKP-02,CN5
- Toyota/Lexus/Subaru SmartKey Reset (40/80/128bit)
- FREE Off-line Full Copy of TIRIS DST (ID60-70) onto TPX2,EH2,CN2,CN5,LKP-02
- FREE Image generator ID70 on ID4D
- Image generator ID67/68 on ID4D
- Full FREE production of TP22, TP23, TP24, TP25
- Free write Component Security 7 bytes Tool (Megamos48)
- In-depth Manual and Technical Support Provided
- Searching of the 7th byte by existing car's key(Megamos48)
Tango Original Universal Transponder Key Programmer Description
The device is intended for programming of transponders, that are a part of automobile immobilizing systems.
Unlike the previous model the Gambit, new model Tango is the two-band device that has allowed to add the list supported transponders with firm Texas Instruments products.
The list of supported for the present moment transponders:
Chip | Features | Copy | Note |
Atmel | |||
Temic 11 | Read | TK5551M, T5 |
|
Temic 12 | Read | TK5551M, T5 |
|
Temic 8C | Read IDE, Authentication | TK5561A | 2 |
TK5551M | Read, Write |
| 1,3 |
TK5561A | Read, Write |
| 1 |
Note1 Transponder is used as an Emulator automaticaly. Thus, there is no a separate tool with registers- and bits access. | |||
ELMOS | |||
ELMOS for BMW | Read, Write, Battery charging | n.a. |
|
EM Microelectronic-Marin | |||
Megamos 13 | Read, Write | T5 |
|
Megamos 48 | Read, Write, PIN-func., Authentication | n.a. |
|
Megamos 8E | Read, Write | n.a. |
|
|
|
|
|
JMA | |||
TPX1 | Read, Write | 1 | |
TPX2 | Read, Write | 1 | |
Note1 Transponder used as an Emulator automaticaly. Thus, there is no a separate tool with registers- and bits access. | |||
Philips, NXP | |||
PIT (PCF7930/31) | Read, Write |
|
|
SECT (PCF7935) | Read, Write, Crypto calc. |
|
|
HITAG2, HITAG2+ | Password/Crypto mode |
| 1 |
HITAG2+EE | Crypto mode |
| 2 |
HITAG2 Extended | Password/Crypto mode |
| 1,2 |
HITAG3 | Read IDE, Authentication |
| 3 |
HITAG Pro | Read IDE, Authentication, |
| 3 |
Custom HITAG-based transponders | |||
HITAG2 for BMW | Password/Crypto mode |
| 1 |
HITAG for VAG | Read IDE |
|
|
Note1 Password mode is FREE of charge. Crypto mode available in FULL version | |||
LKP | |||
LKP-02 | Read, Write | 1,2,3 | |
LKP-04 | Read, Write | 1,2,3 | |
Note1 Transponder used as an Emulator automaticaly. Thus, there is no a separate tool with registers- and bits access. | |||
Saab | |||
Saab custom | Read | TK5551M, T5 |
|
Silca | |||
EH2 | Read, Write, Reset |
| 1,2 |
Note1 Transponder used as an Emulator automaticaly. Thus, there is no a separate tool with registers- and bits access. | |||
Scorpio-LK | |||
Read, Write | 1 | ||
Read, Write | 1 | ||
Read, Write | 1 | ||
Read, Write | 1 | ||
Read, Write | 1 | ||
Note1 Transponder used as an Emulator automaticaly. Thus, there is no a separate tool with registers- and bits access. | |||
Sokymat | |||
T5 | Read, Write |
| 1,2,3 |
Note1 Transponder used as an Emulator automaticaly. Thus, there is no a separate tool with registers- and bits access. | |||
Texas | |||
TIRIS 4C | Read |
| |
TIRIS DST 4D | Read, Write, Crypto calc. |
| |
TIRIS DST 4E | Read, Write, Crypto calc. |
| |
TIRIS DST+ | Read, Write, Crypto calc. |
| |
TIRIS DST80 | Read, Write | 1 | |
Texas TRPWS21 | Read, Write |
|
|
Note1 Combined with the TIRIS DST+ mode. | |||
No name | |||
CN2, YS01 | Read, Write |
| 1,2 |
Note1 Transponder used as an Emulator automaticaly. Thus, there is no a separate tool with registers- and bits access. | |||
Tango Original Universal Transponder Key Programmer
Tango+ for Toyota/Lexus V6.10 [Sept 20] & Subaru V1.2 [Sept 20] SmartKey Systems OBD Frameworks
Update 1.108 of Tango programmer introduces brand new functionallity for work with Toyota/Lexus vehicles equiped with SmartKey Systems via OBD. The framework is implemented in Tango Toyota+ software. Main objective of the software is to allow addition of Smart keys in "all keys lost" situation by creating emulator which allows to get permission to register new keys via diagnostic equipment.
System requirements:
- Tango programmer
- J2534 PassThru compliant OBD cable
- SLK emulator corresponding to system type
- Toyota maker software activation
- SLK-0x software activation
- Toyota TIS Techstream
- Windows XP/7/8/10 PC/Laptop
- Tango+ Toyota software documentations
- Tango+ Subaru software documentations
Updates of Toyota+ & Subaru+ are automatic through Tango main software (Help->Updates->Check Updates)
Difference between SLK-0x (03,04,05,07) and SLK-0xE (03E,04E,05E,07E) emulators - SLK-0xE (03E,04E,05E,07E) retain programmed data instead of reverting to default state if not powered.
Scorpio-LK Emulators
Emulator SLK-01
- Supports work with DST40 smartkeys.
- SLK-01 supports emulation/clonning - functionallity of the emulator is part of Tango base software.
Emulator SLK-02
- Supports work with DST80 smartkeys
- SLK-02 supports emulation/clonning - functionallity of the emulator requires activation of SLK-02 additional software.
Emulator SLK-03 & SLK-03E
- Supports work with DSTAES smartkeys.
- SLK-03 supports emulation/clonning/image generation - functionallity of the emulator requires activation of SLK-03 additional software.
Emulator SLK-04 & SLK-04E
- Supports work with DSTAES smartkeys.
- SLK-04 supports emulation/clonning/image generation - functionallity of the emulator requires activation of SLK-04 additional software.
Emulator SLK-05 & SLK-05E
- Supports work with DSTAES smartkeys.
- SLK-05 supports emulation/clonning/image generation - functionallity of the emulator requires activation of SLK-05 additional software. Added in Tango update 1.110 (November 2017)
Emulator SLK-06
- Supports work with Gen1 Toyota H bladed keys Added in Tango update 1.114 (April 2019
Emulator SLK-07E
- Supports work with DSTAES smartkeys Added in Tango update 1.117 (September 2020)
Tango Documents | ||
|---|---|---|
1.9Mb | RangeRoverL320HTPro Help File June 2021 | |
353Kb | SLK-07E emulator Help File September 2020 | |
1.6Mb | TangoPlus Subaru contextual help file V1.3 Updated September 2021 | |
1.5Mb | TangoPlus Toyota contextual help file for vehicles up to 2017 December 2021 | |
1.5Mb | TangoPlus Toyota contextual help for vehicles 2017+ December 2021 | |
2Mb | Tango + Barracuda Toyota-H Immobilizer All Keys Lost solution Help File Update January 2020 | |
574Kb | Toyota-H Immobilizer All Keys Lost solution Help File April 2019 | |
244Kb | Hitag classification as of Tango SW1.99 | |
259Kb | Texas transponder emulators Classification | |
521Kb | Guide for Synchro maker Volvo | |
58Kb | Guide for Component Security Viewer | |
104Kb | Searching of the 7th byte by existing car’s key | |
51Kb | Write Component Security 7 bytes Tool (Megamos48) | |
162Kb | Help for TP22-25 mass production (Unlimited as of Tango SW1.67) | |
290Kb | Currently supported transponder cloning can be viewed in (Tango Features PDF) | |
